ES Antikor SL – special grade

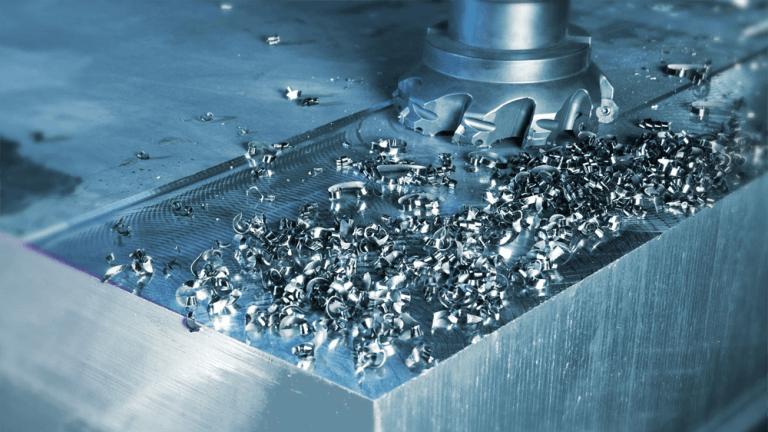

Corrosion-resistant steel with good cutting properties

This newly developed special material is a further development of the well-known steel ES Antikor S.

Product features
  • Special grade
  • As-supplied condition: Quenched and tempered to 280-325 HB (approx 950-1100 N/mm²)
  • General fields of application: Mould frames and tools for processing aggressive plastics or for use with highly corrosive media
  • The special chemical composition and manufacturing variants of this new and innovative tool steel provides it with the following special properties: excellent machinability, uniform hardness throughout the cross section, adequately high corrosion resistance, high dimensional stability, high toughness, highest weldability, high thermal conductivity.
Configure & Buy
  • Flat Bar

    Flat Bar

    We supply rolled or forged flat material as bars, sheets or blocks.

    Some steel grades are also available with a pre-milled surface.

    configure & buy
  • 6-Side-Machining

    6-Side-Machining

    With our optimized machining shop we are in the position to provide you with any requested dimension.

    For this we also guarantee you shortest delivery times and  high economic efficiency.

    configure & buy
  • Ground Flat

    Ground Flat

    Ground flats produced according to DIN 59350, in length of 500 mm or 1000 mm, thickness precision ground, width ground or milled, length milled, surface free of decarbonisation, corrosion resistant packing.

    configure & buy
  • Standard Bar

    Standard Bar

    Standard bars produced according to mills‘ specification, in length of 500 mm.

    Thickness precision ground, width ground or milled, length milled, surface free of decarbonisation, corrosion resistant packing.

    configure & buy

Technical data

Chemical analysis
C Mn S Cr Versch.
0,04% 1,2% 0,12% 13% Spurenelemente

Downloads

Overview

PDF, 996 KB

Our products

PDF, 1.57 MB
